OUTDOOR POWER

CASE STUDY 1 - GARDEN SOCKET
Location:	A house near The Avenue, Southampton.
Job Description:	Supply and fit a waterproof double socket in the garden to run a pond pump and spotlight.

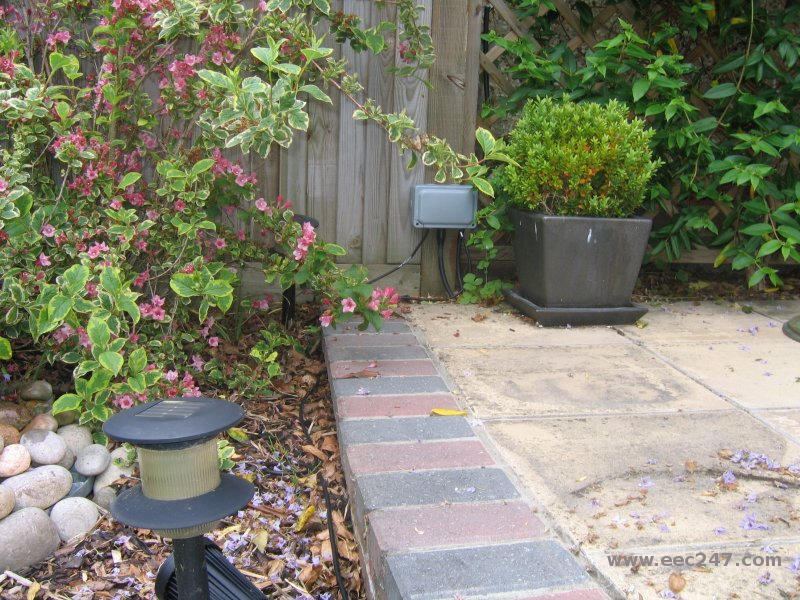

A waterproof 13A double socket in the garden for the pond pump and low level lights.
Note - the armoured cable run underneath the paving to the socket, run from an RCD fused spur from the garage.

CASE STUDY 2 - OUTDOOR SOCKET
Location:	A house in Portswood, Southampton.
Job Description:	Supply and fit a waterproof double socket for the lawnmower in the garden.

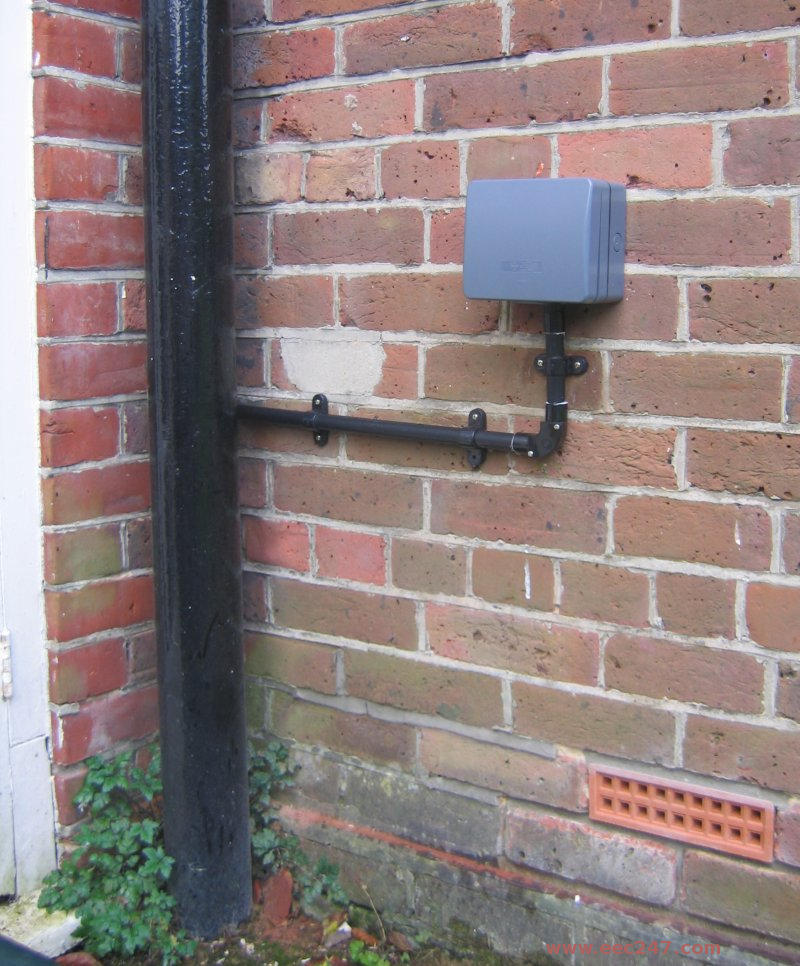

Outdoor waterproof 13A socket for the lawnmower attached to the back wall of the house.

CASE STUDY 3 - 16A OUTDOOR SOCKET
Location:	A farmhouse near Romsey.
Job Description:	Supply and fit a 16A supply & waterproof socket to run some semi permanently connected farm machinery.

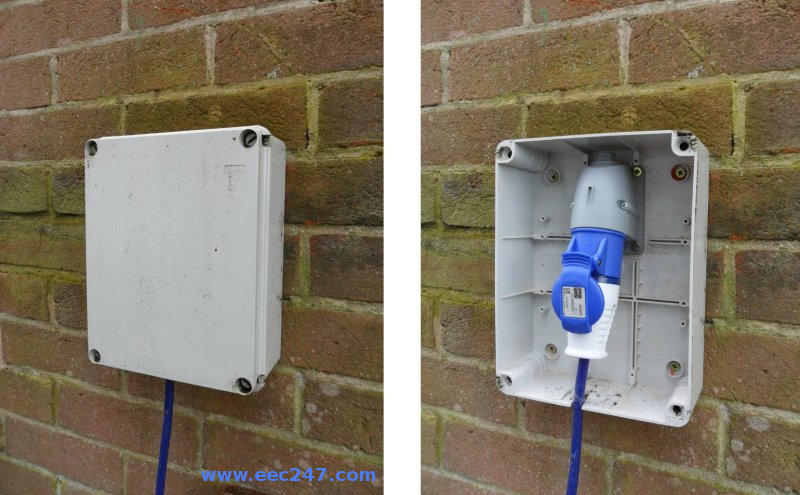

Outdoor 16A waterproof socket to run some farm machinery.

CASE STUDY 4 - A PAIR OF EXTERNAL 13A WATERPROOF SOCKETS
Location:	A house in Hamble.
Job Description:	Supply and fit a pair of double 13A waterproof sockets.

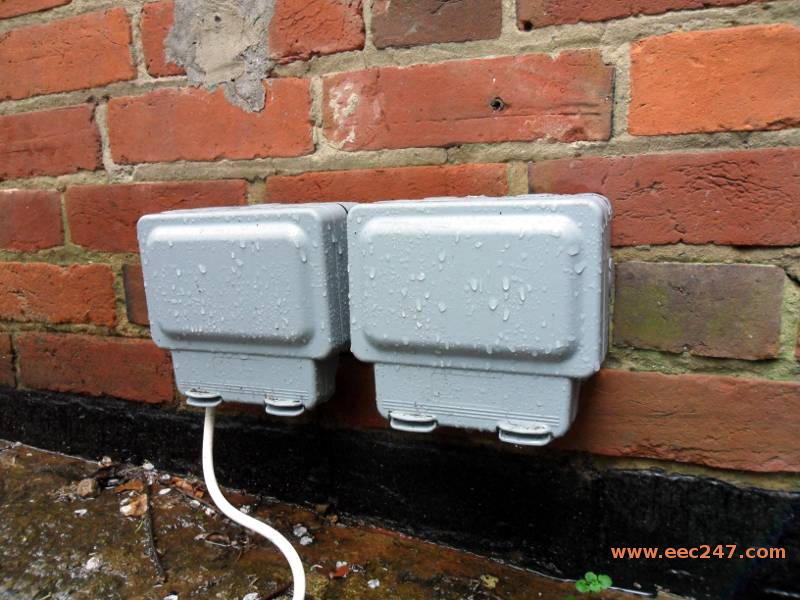

A pair of double 13A waterproof sockets.

CASE STUDY 5 - POND ELECTRICS
Location:	A house near West End.
Job Description:	Design, supply and fit timed controls for a pond pump, filter and fountain. The controls need to be accessible and in an external waterproof enclosure.

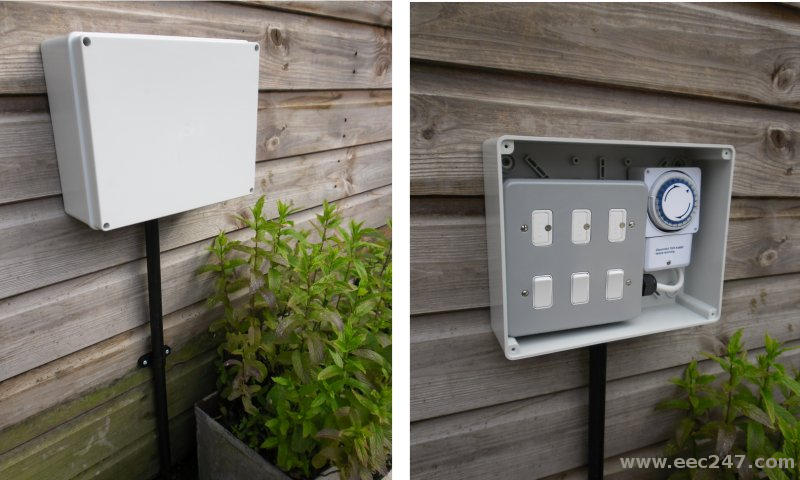

Control panel for a pond pump, filter and fountain

Control panel for the pond pump, filter and fountain (before the labels were attached).

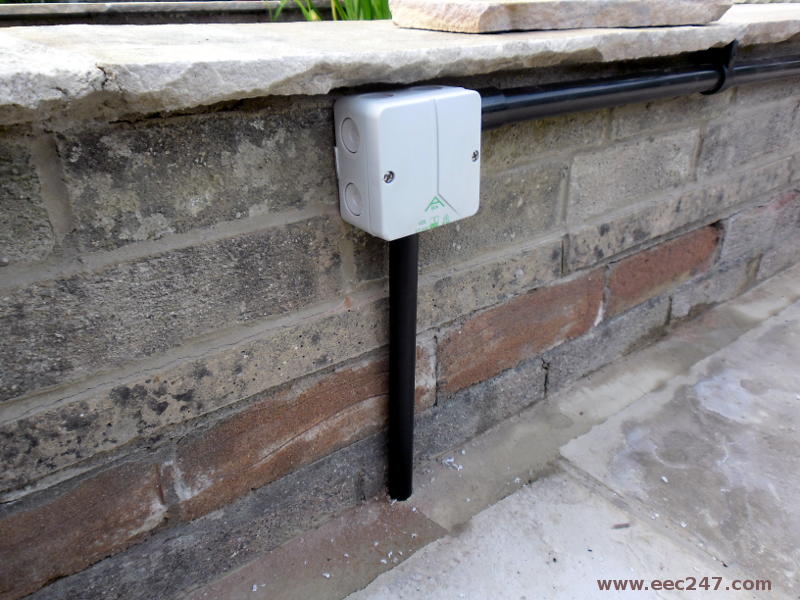

Waterproof junction box for the pond control wiring.

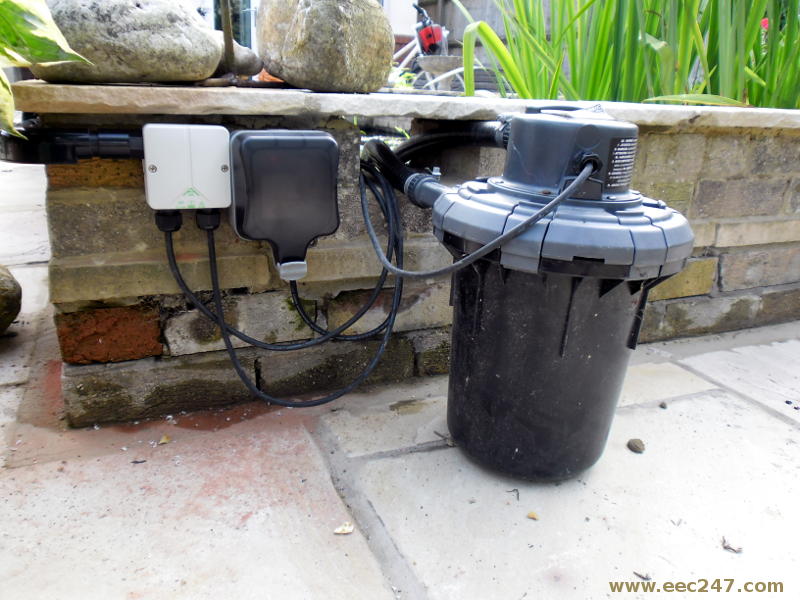

Connections to the Pond Pump, Filter and Fountain.
