OUTDOOR LIGHTING

CASE STUDY 1 - SUBTLE PATIO LIGHTING
Location:	A house near Portswood, Southampton.
Job Description:	Supply and fit a subtle patio light at the rear of the property rather than a blinding security spotlight.

Subtle patio lighting for a customer to sit out on a summer's evening sipping wine without being blinded by a floodlight.

CASE STUDY 2 - SIDE ENTRANCE LIGHTS
Location:	A house in Chandlers Ford, Southampton.
Job Description:	Supply and fit a pair of lights for the side entrance and door into the back of the garage that operate from dusk to dawn when a person walks by. Mainly, they will be used to find a door key in the dark.

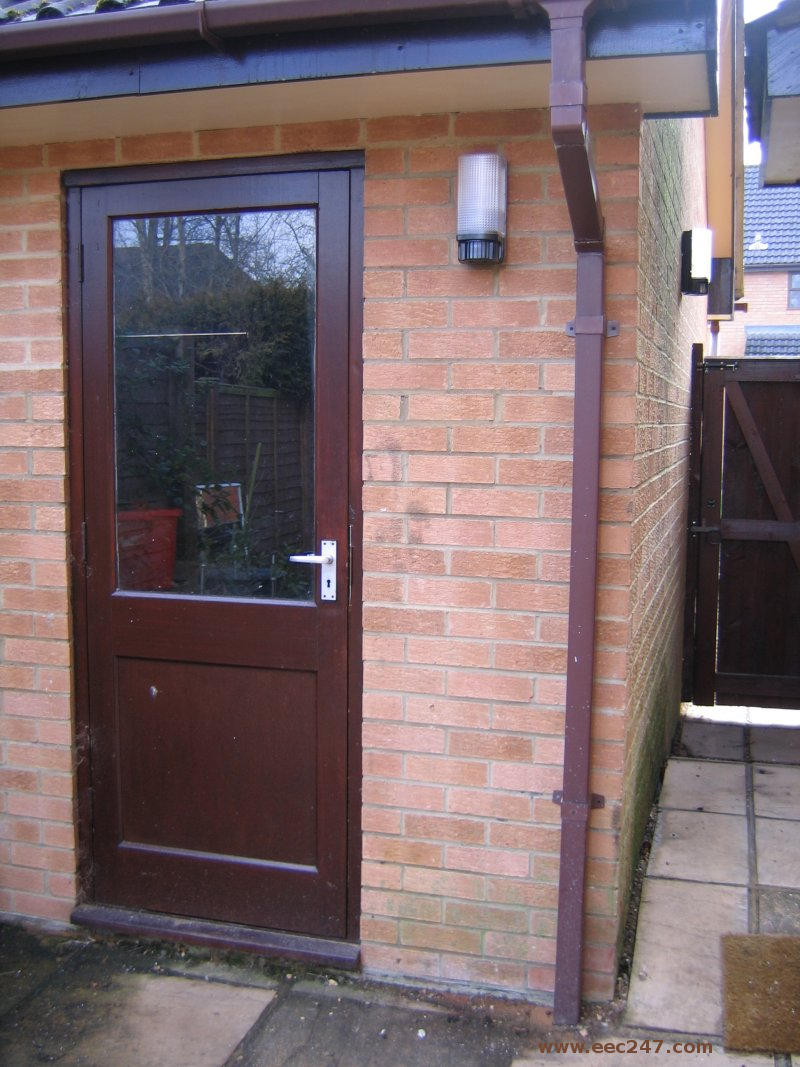

A pair of PIR (Passive Infra Red) controlled bulkhead lights with integrated photocell. They only operate from dusk to dawn when they detect movement.

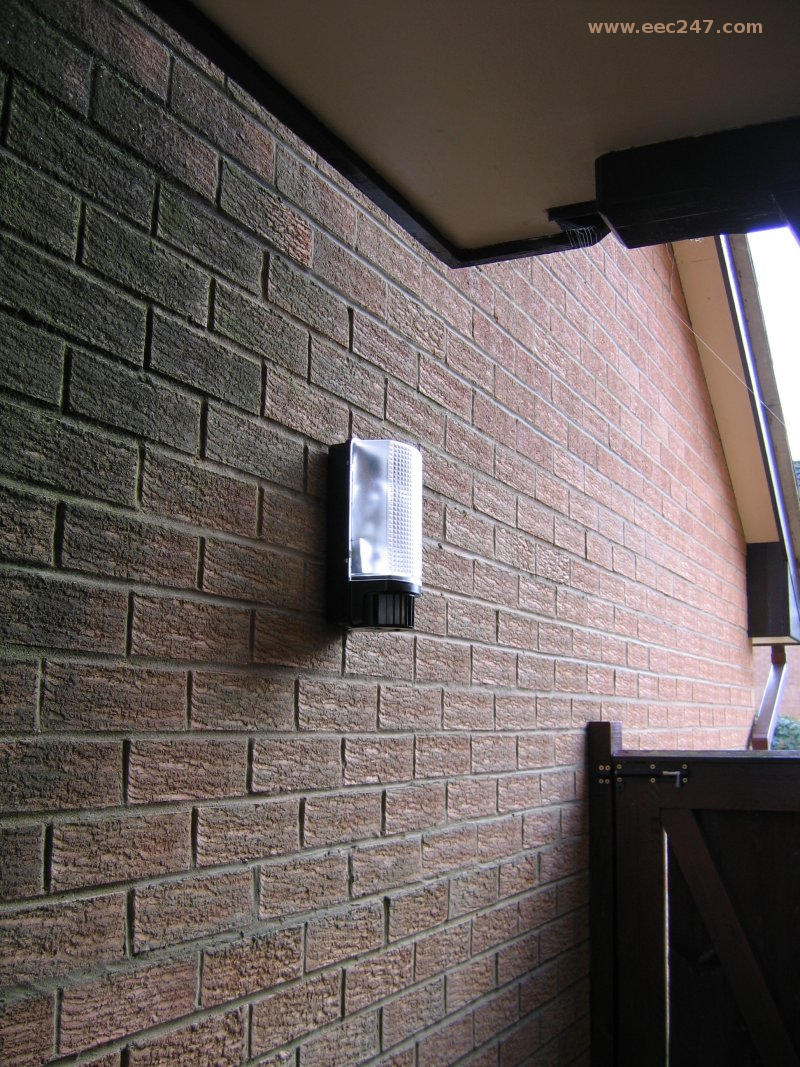

Close up of one of the PIR bulkheads shown above.

CASE STUDY 3 - PORCH LIGHT NEAR A ROAD
Location:	A house near Netley Abbey, Southampton.
Job Description:	This front door is close to a main road and the existing porch light turned on with passing traffic. The solution was to use a sensor at a higher level than the light to cure the problem.

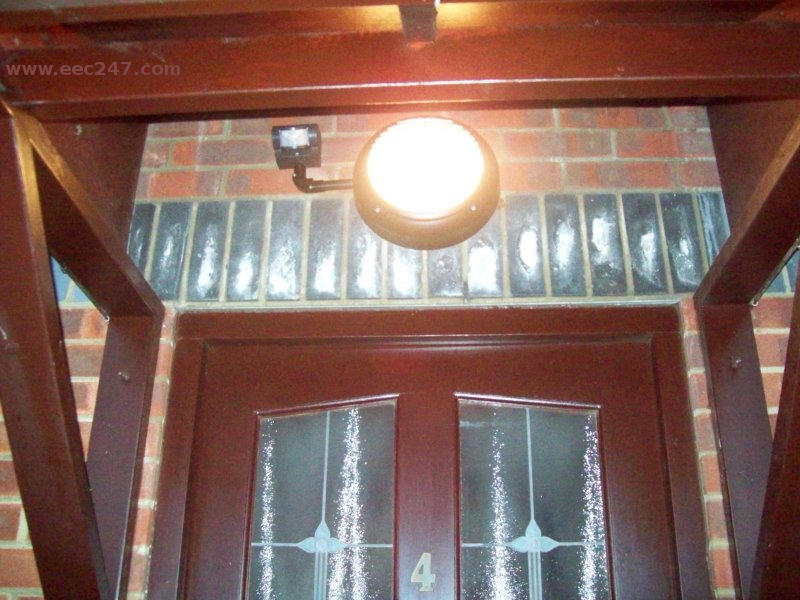

Porch light controlled by PIR mounted remotely to avoid triggering by passing traffic.

CASE STUDY 4 - GARDEN FLOODLIGHT
Location:	A house near The Avenue, Southampton.
Job Description:	This customer wanted a floodlight fitted with the cable in conduit hidden from view in most of the garden.

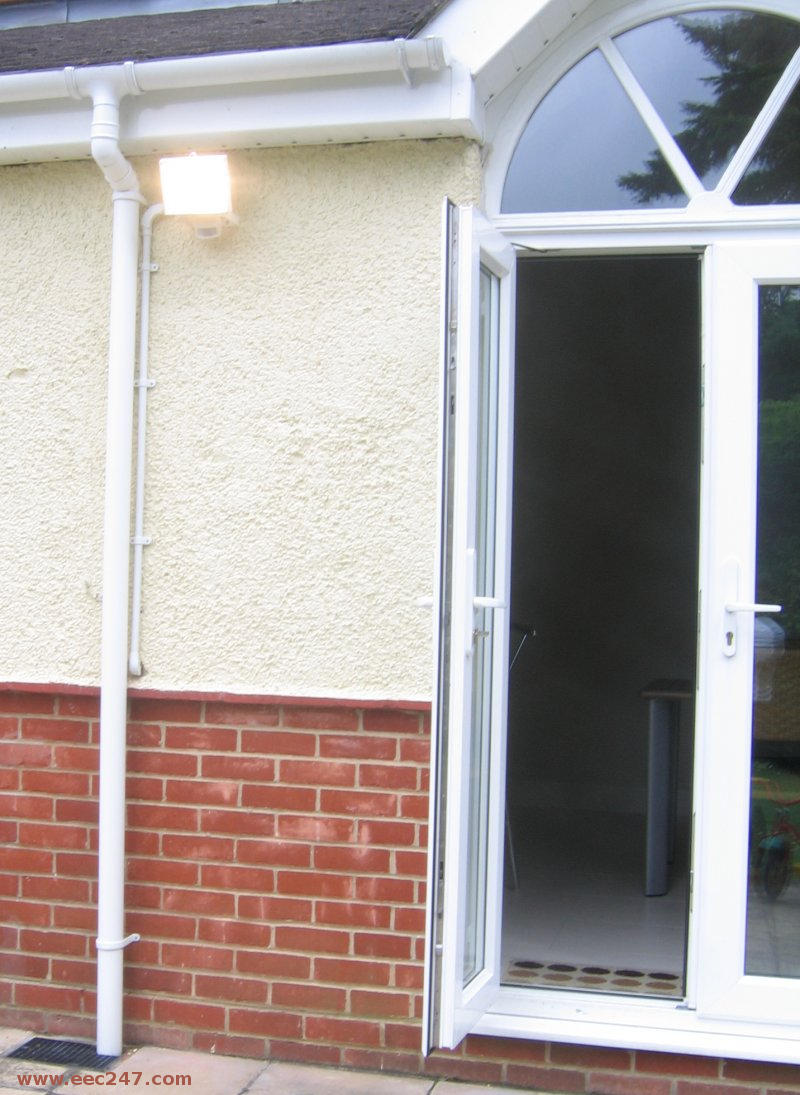

Floodlight for the garden with cable in white conduit run behind down pipe.
When viewed from down the garden, the conduit cannot be seen.

CASE STUDY 5 - PASSAGEWAY FLOODLIGHT
Location:	A house near Southampton University.
Job Description:	This customer wanted a floodlight fitted for a narrow passageway between the house and garage.

Floodlight in passageway between house and garage.

CASE STUDY 6 - FARMHOUSE STEP LIGHT
Location:	A Farmhouse outside Romsey.
Job Description:	This customer wanted a light to illuminate a step to the side entrance of the house in an area with no street lighting.

Light to illuminate side entrance to a farmhouse

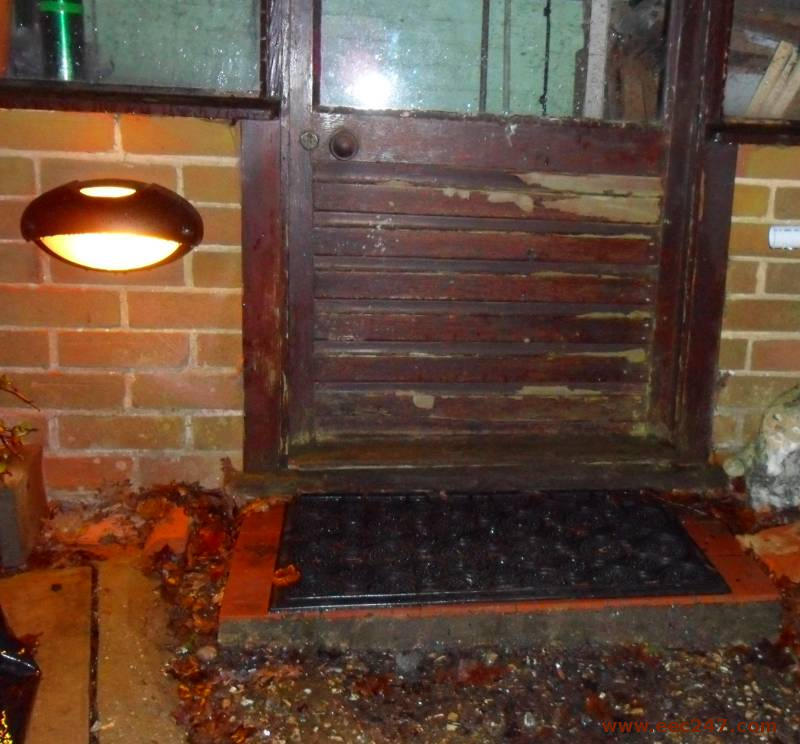

Step light for a Farmhouse side entrance where there is no street lighting.

CASE STUDY 7 - PORCH LANTERN ON REMOTE SENSOR
Location:	A Bungalow in Nursling.
Job Description:	This customer, living in a bungalow near a busy road wanted a porch light that only came on when a visitor came up the path.

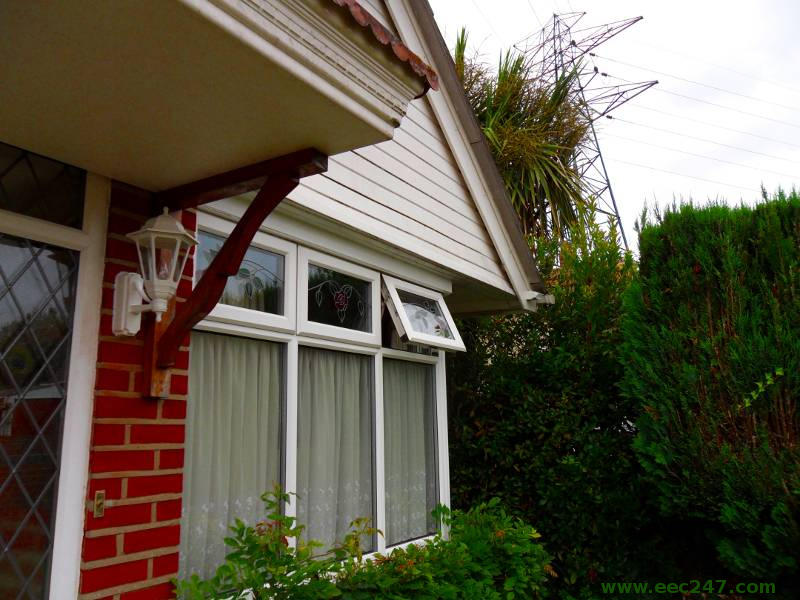

Lantern in the porch that only illuminates when a visitor comes up the drive

Porch lantern with remote sensor that only turns on the lantern when a visitor comes up the path, and not by nearby traffic on the road.

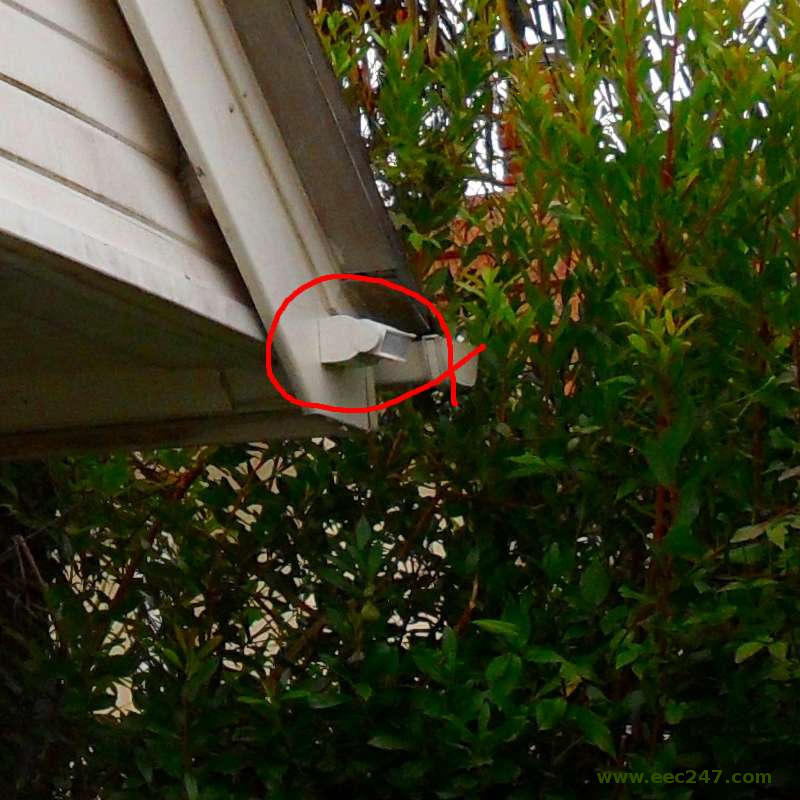

The remote sensor is adjusted to ignore road traffic, but trigger when there is a visitor on the pathway.
#

CASE STUDY 8 - THREE WAY SWITCHED MULTIPLE LIGHTS
Location:	A House near Southampton.
Job Description:	This customer, required a number of lights down the side of the building with a PIR sensor at either end to turn on all the lights. There was also a requirement to manually override the PIR sensor to either have all the lights off or on.

Lights & PIR sensors at either end of the wall.

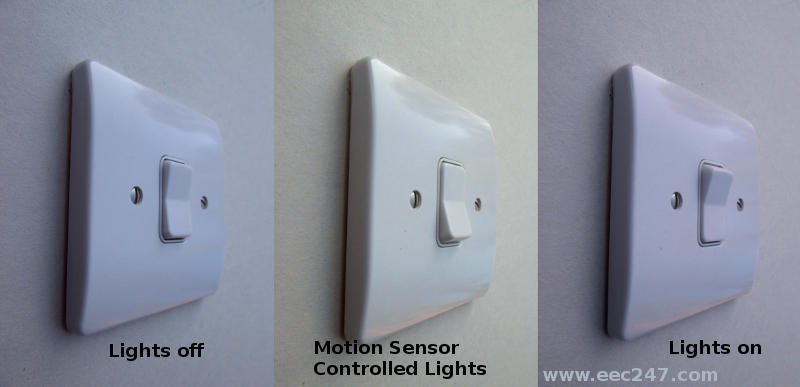

Three position switch with, off, PIR controlled or always on settings

The three position switch with the "off", "PIR sensor controlled" or "always on" settings.
#

CASE STUDY 9 - DECK LED LIGHTING
Location:	A House near Winchester, overlooking a Golf Course.
Job Description:	This customer, required some subtle deck uplighting for an existing deck area.

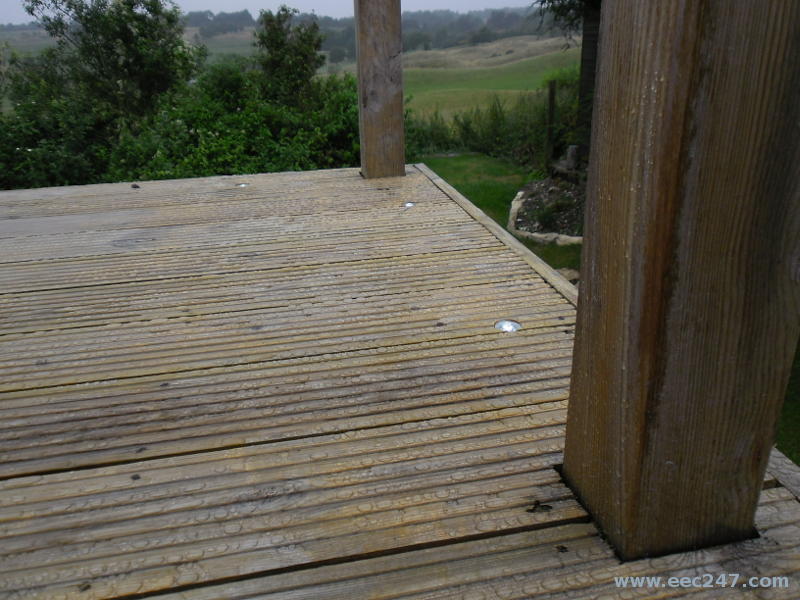

The completed deck lighting (in the rain as usual for most of the year).

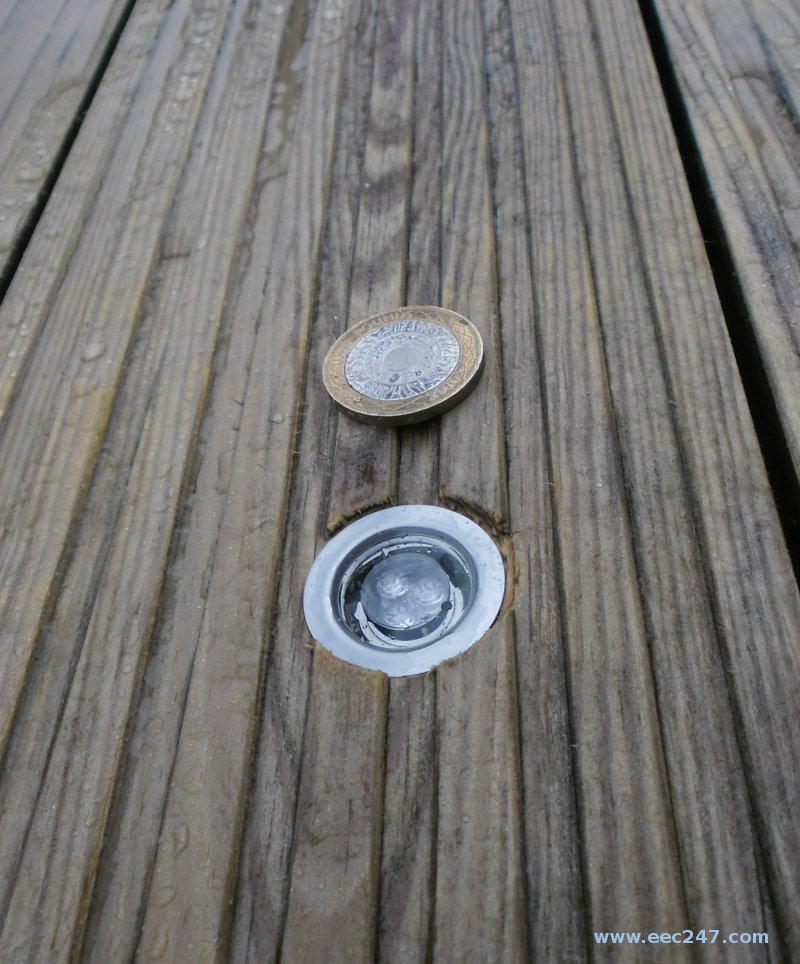

One of the LED deck lights compared to a two pound coin.
They are approximately the same size.

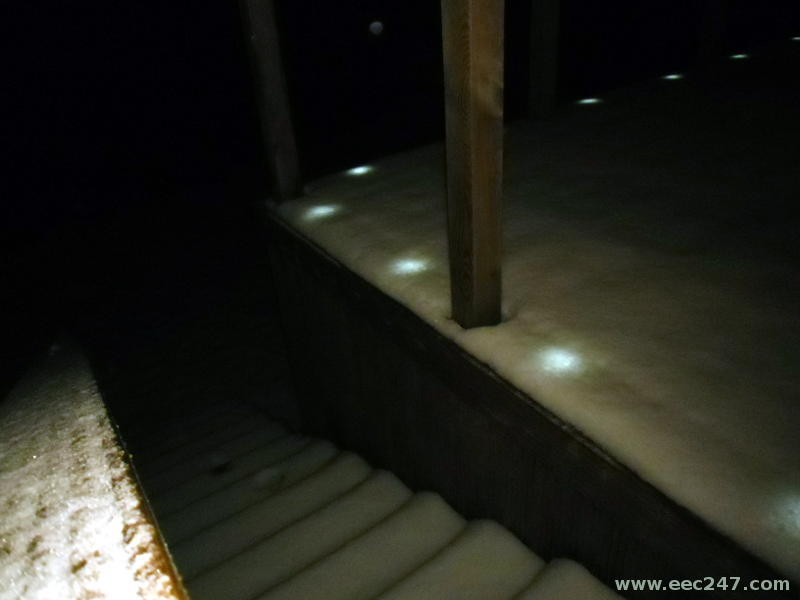

When it snowed, they looked really good.
