ELECTRICAL INSTALLATION IN KITCHENS

CASE STUDY 1 - A COUNTRY STYLE SHAKER KITCHEN
Location:	A house to the west of Southampton, on the edge of the New Forest.
Job Description:	Supply and fit Electrics for a "Country Style Shaker Kitchen", including supply for electric oven, extra sockets above and below the worktops, isolator (switch) above worktop for plinth heater, cooker hood, down lighters, under cupboard lighting, in cupboard display lighting and central heating wiring.

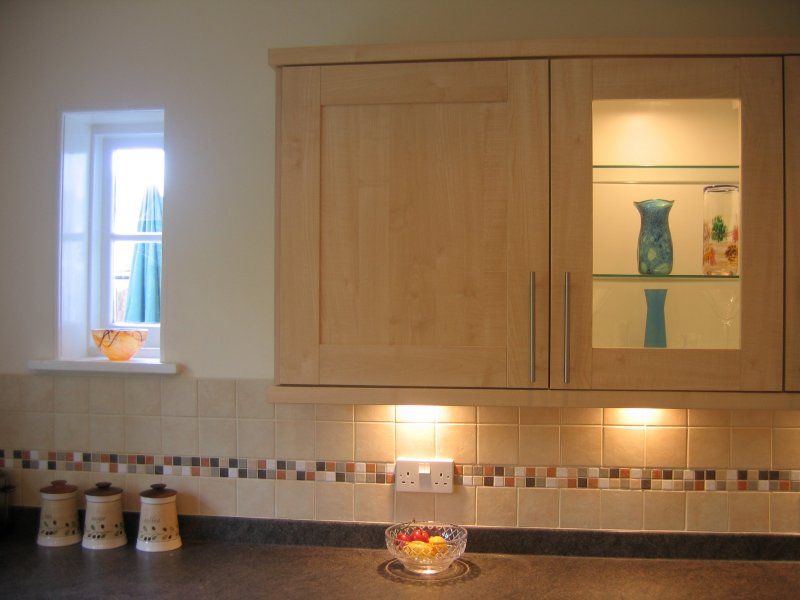

Under cupboard lighting and in-cupboard display lighting

A country style kitchen with halogen under cupboard lighting and in-cupboard halogen display lighting.

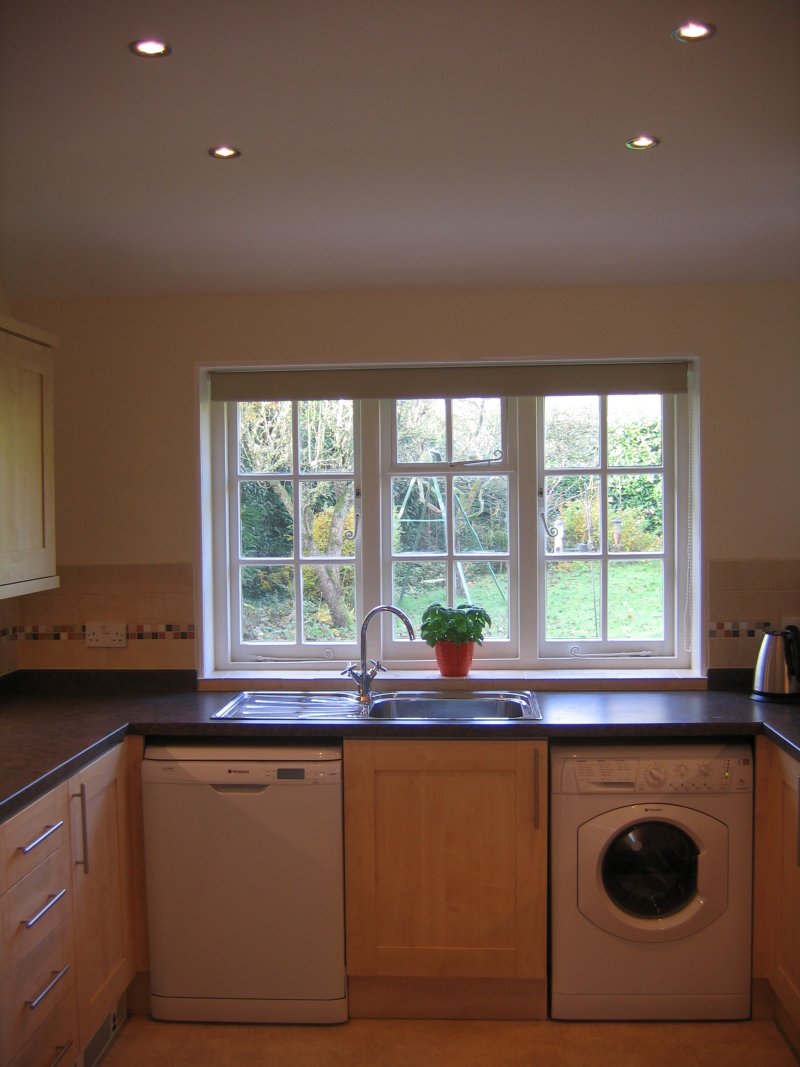

Down lighting gives an even spread of lighting throughout the kitchen

Mains Halogen Downlighters give even lighting with a north facing garden.
Dishwasher and Washing machine sockets are accessible in the sink cupboard.

Kitchen extractor hood lighting and more under cupboard lighting

Under hood and cupboard lights give good worktop lighting.
The central heating boiler and controls are in the end cupboard.
There's at least one double socket per meter length of worktop length, so there's always enough power points.

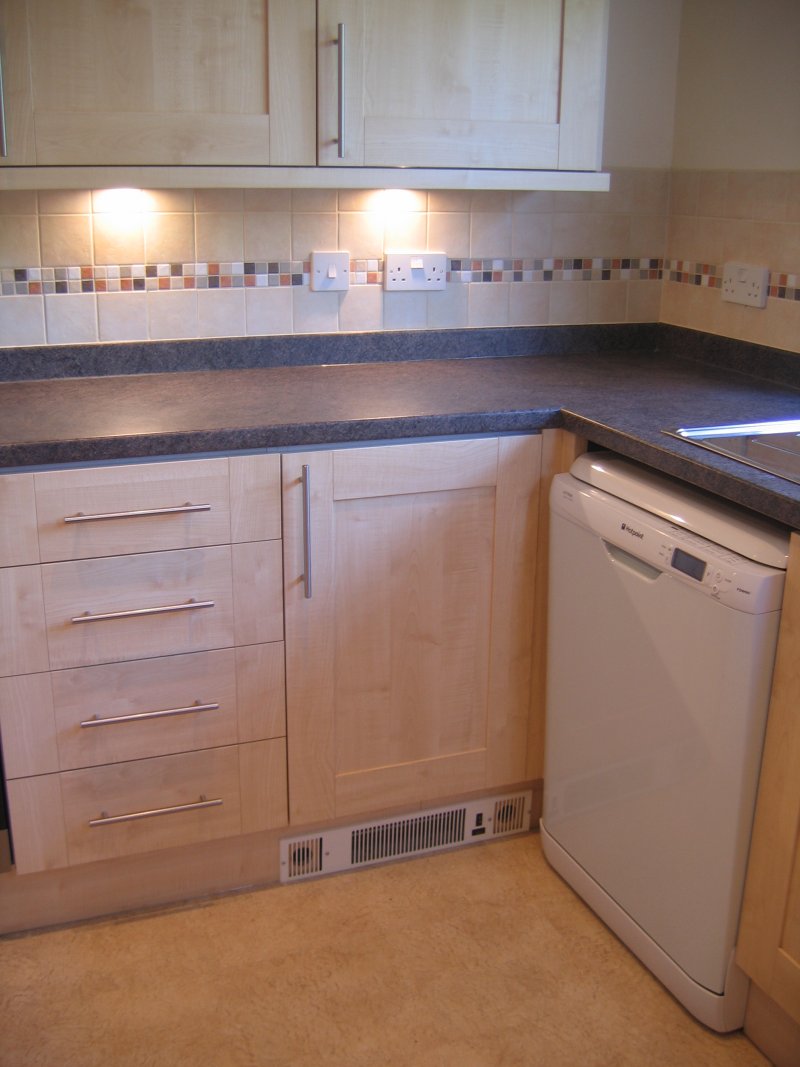

A switch above the worktop for the plinth heater is always a good idea!

A switch above the worktop switches off the plinth heater.
